products details

Home > Products >

TC TYPE Oil Seal

FKM TC Type Oil Seal Temperature To 250°C Brown Double Lip oil seals for Transmission

All Category

Customized Oil Seal

Miss. Elen

xiangteoilseal@163.com

18131923768

Contact Now

FKM TC Type Oil Seal Temperature To 250°C Brown Double Lip oil seals for Transmission

Brand Name:	CCO
Model Number:	TC Oil Seal
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Paper+Carton Box
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Compatibility:

Wide Range Of Fluids And Gases

Oil Resistance:

Excellent

Working Medium:

Oil, Water, Gas

Package Quantity:

Thickness:

5mm To 10mm

Shape:

Round

Material:

Nitrile Rubber

Pressure:

0.03Pa

Supply Ability:

10000/week

Highlight:

FKM TC type oil seal

double lip transmission oil seal

high temperature oil seal 250°C

Product Description

FKM TC Type Oil Seal Temperature To 250°C Brown Double Lip oil seals for Transmission

Feature

It has good adaptability and can function stably under different working conditions. Whether in high or low temperature

This series of FKM fluorocarbon rubber TC-type oil seals is specifically designed for harsh operating conditions, available in multiple specifications including 15×30×7mm, 22×40×10mm, and 8×22×5mm, to meet the sealing requirements of various equipment. Made from high-purity FKM fluorocarbon rubber material and processed using a special vulcanization process, these seals offer exceptional high and low-temperature resistance, capable of stable operation in environments ranging from -20°C to 200°C, far exceeding the temperature limits of ordinary rubber products.

The product features a black or brown double-lip structure as its core design, with a spiral spring integrated into the main lip to ensure zero leakage at 1.6 MPa pressure. The dust-proof lip effectively blocks dust and impurities, providing dual protection to extend equipment lifespan. It demonstrates outstanding oil resistance and aging resistance, capable of withstanding the corrosion of hydraulic oil, gear oil, and most chemical solvents, maintaining elastic stability during continuous operation.

Brand Name	CCO
Original	Hebei,China
Material	NBR/FKM/ACM/SILICONE
Used	Automobile Industry Industrial Machinery Agricultural Machinery
Sample	Available
Size	Standard
Features	Oil Resistance, Heat Resistance,Wear Resistance

Other Types

Type	Features
TC	The outer part is rubberized design, double lip with spring
SC	The outer part is rubberized design, double lip with spring
TB	The outer layer is an iron shell, double lip with spring
SB	The outer layer is an iron shell, double lip with spring
TA	The design of the inner shell combination is used to strengthen the steel of the oil seal,double lip with spring
EC	It is mainly used for the orifice core of the oil seal and the bearing, mainly for the gear box and other parts
SA	The design of the inner shell combination is used to strengthen the steel of the oil seal,double lip with spring
DKB	The outer iron shell is fluted and has a dual lip dust seal.
TCN	The exterior is iron on one side and rubber on the other, with springs on both lips
TCV	Outer layer is rubber, inner skeleton, double lip with spring
VG	Surface threaded, single lip without spring
VB	Outside is iron shell, inside is rubber, single lip without spring
VC	The outer part is rubberized, single lip without spring

Details Images

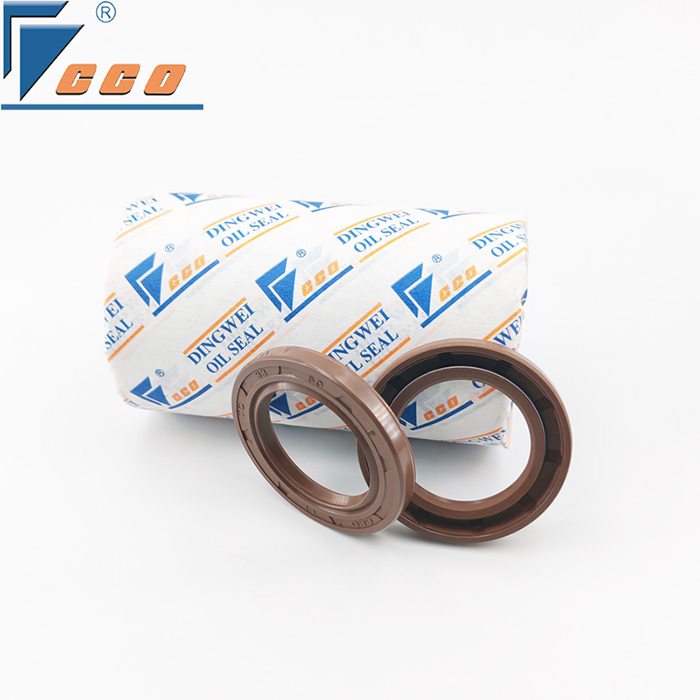

FKM TC Type Oil Seal Temperature To 250°C Brown Double Lip oil seals for Transmission 0

FKM TC Type Oil Seal Temperature To 250°C Brown Double Lip oil seals for Transmission 1

Packaging

FKM TC Type Oil Seal Temperature To 250°C Brown Double Lip oil seals for Transmission 2

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.

FKM TC Type Oil Seal Temperature To 250°C Brown Double Lip oil seals for Transmission 3

FKM TC Type Oil Seal Temperature To 250°C Brown Double Lip oil seals for Transmission 4
