Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal

Brand Name: CCO
Model Number: SB Oil Seal
MOQ: Negotiable
Price: Negotiable
Packaging Details: Paper+Carton Box
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Features:
Highly Resistant To Oil And Heat
Lubrication:
Oil Or Grease
Shaft Diameter:
5mm To 100mm
Spring:
One
Working Temperature:
-40℃ To 120℃
Material:
Rubber
Type:
Rotary Shaft Seal
Place:
China
Supply Ability:
10000/week
Highlight:

High Temperature Oil Seal Ring

,

Skeleton Oil Seal Ring

Product Description

Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal





Product

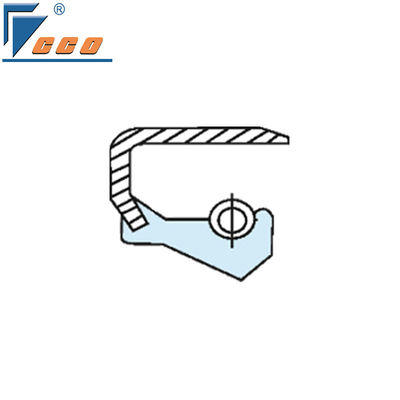

The outer layer is an iron shell, designed for steel rotating shafts or cast iron pool holes.



Exceptional wear resistance for high-speed, high-frequency applications: SB type oil seals are made from high-quality, highly elastic materials such as nitrile rubber (NBR) and fluorocarbon rubber (FKM), combined with advanced vulcanization processes, to provide outstanding wear resistance. In high-speed rotating applications (maximum speed up to 3000 rpm) such as motor shafts, gearbox input shafts, and high-frequency vibrating compressor crankshafts, wear rates are reduced by 30% compared to standard oil seals, significantly extending the replacement cycle and minimizing equipment downtime for maintenance.


The temperature resistance range is extremely broad: NBR material can operate stably at temperatures ranging from -40°C to +120°C, meeting the requirements of conventional industrial environments; FKM material can withstand extreme temperature differences from -26°C to +250°C. Whether in outdoor equipment in cold regions or in high-temperature, high-pressure engine compartments, SB-type oil seals maintain excellent elasticity and sealing performance, ensuring stable operation of equipment under all conditions and in all environments.





Materials







MATERIAL



 FEATURES Temperature

Nitrile Rubbr

(NBR)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Fair ozone resistance

Fair acid resistance

 -40~120°C

Fluorinated Rubber

(FKM)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Excellent ozone resistance

Excellent acid resistance

 -26~250°C
Silicone Rubber

Poor wear resistance

Excellent aging resistance

Poor Oil resistance

Good water resistance

Excellent ozone resistance

Fair acid resistance

 -60~225°C





Standard





Number Specifications Number Specifications
1 20*40*11 28 150*180*14
2 28*45*8 29 160*190*14
3 38*58*11 30 160*190*16
4 40*62*9 31 165*220*20
5 42*55*7 32 170*200*15
6 45*68*12 33 170*200*16
7 50*72*12 34 180*210*15
8 55*78*12 35 180*210*16
9 60*80*8 36 180*235*20
10 60*80*10 37 190*220*15
11 65*90*13 38 190*225*16
12 75*100*13 39 200*230*15
13 80*105*13 40 200*230*16
14 90*115*13 41 200*240*20
15 95*120*13 42 210*240*15
16 100*125*13 43 210*250*16
17 95*130*13 44 210*250*20
18 105*135*14 45 220*255*16
19 110*140*14 46 220*260*22
20 115*145*14 47 230*260*15
21 120*150*14 48 240*270*15
22 125*155*14 49 240*280*19
23 130*160*14 50 250*280*15
24 135*165*14 51 270*330*25
25 135*170*12 52 280*320*18
26 140*170*14 53 320*360*25
27 145*175*14 54 365*405*18



Details Images

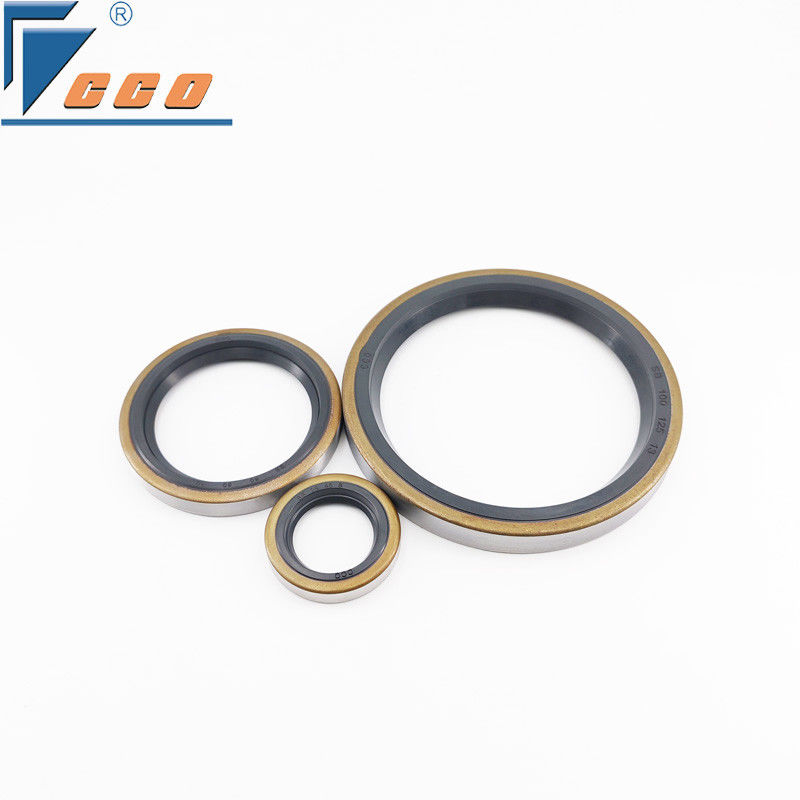

Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal 0Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal 1





Product Packaging





Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal 2Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal 3









Company Introduction







  Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.



  The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products.



  Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.







Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal 4



 Full Size Nitrile Rubber Sealing High Temperature Oil Seal Ring Skeleton Oil Seal 5
