High Pressure Rotary Oil Seals NBR TB Full Standard Seals in Stock Two Lips Oil Sealing

Brand Name:	CCO
Model Number:	TB Oil Seal
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Paper Bags+Carton
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Function:

Sealing

Color:

Black

Service Life:

Above 5 Years

Advantage:

Long Working

Standard:

Standard Parts

Orgin:

China

Sample:

Provided

Temperature Range:

-40°C To 120°C

Supply Ability:

10000/week

Product Description

High Pressure Rotary Oil Seals NBR TB Full Standard Seals in Stock Two Lips Oil Sealing

Materials

1. Nitrile rubber (NBR)

Performance characteristics: good heat resistance, wear resistance, resistance to a variety of lubricants, greases, oil and gas mixtures, etc., the applicable temperature is generally in - 40 ℃ ~ 120 ℃.
Application advantages: relatively low cost, good overall performance, can meet the sealing needs of many conventional working conditions, can be used in automotive engines, gearboxes and other parts of the oil seal.

2.Fluorine rubber (FKM)

Performance characteristics: outstanding aging resistance, heat resistance, oil resistance, almost applicable to all lubricants, fuel oils, gasoline, not easy to harden in the oil containing extreme pressure additives, applicable temperature - 26℃ ~ 250 ℃.
Application Advantage: It can be used in some occasions with very high requirements for oil resistance and heat resistance, such as high-end equipment in aerospace, chemical industry and other fields.

Other Type

Type	Features
TC	The outer part is rubberized design, double lip with spring
SC	The outer part is rubberized design, double lip with spring
TB	The outer layer is an iron shell, double lip with spring
SB	The outer layer is an iron shell, double lip with spring
TA	The design of the inner shell combination is used to strengthen the steel of the oil seal,double lip with spring
EC	It is mainly used for the orifice core of the oil seal and the bearing, mainly for the gear box and other parts
SA	The design of the inner shell combination is used to strengthen the steel of the oil seal,double lip with spring
DKB	The outer iron shell is fluted and has a dual lip dust seal.
TCN	The exterior is iron on one side and rubber on the other, with springs on both lips
TCV	Outer layer is rubber, inner skeleton, double lip with spring
VG	Surface threaded, single lip without spring
VB	Outside is iron shell, inside is rubber, single lip without spring
VC	The outer part is rubberized, single lip without spring
RB	It is a seal for rotating shafts of elastomers protected by a metal bracket, mainly acting as a barrier to the intrusion of external contaminants.
9RB	It is a seal for rotating shafts of elastomers protected by a metal bracket, mainly acting as a barrier to the intrusion of external contaminants.
DC	Outer rubber inner skeleton with springs on both sides.
DB	The lip of the outer skeleton is rubber, with springs on both side.
TC4	Outer rubber, inner skeleton, spring in both lips
TG4	Outer rubber, inner skeleton, spring in both lips, threaded surface.
TB4	Outer shell iron, inner rubber, spring in both lips.

Images

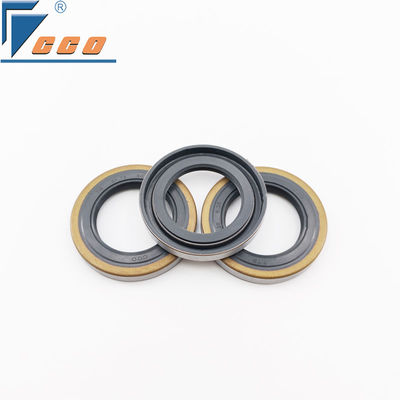

High Pressure Rotary Oil Seals NBR TB Full Standard Seals in Stock Two Lips Oil Sealing 0

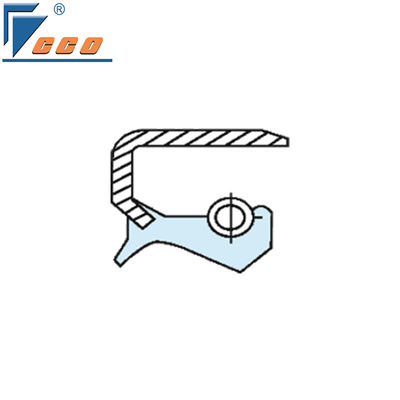

High Pressure Rotary Oil Seals NBR TB Full Standard Seals in Stock Two Lips Oil Sealing 1

About Our Company

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
