25 * 35 * 6mm Mechanical Oil Seal SC Type Brown Rubber Seals FKM Pump Oil Sealer

SC TYPE

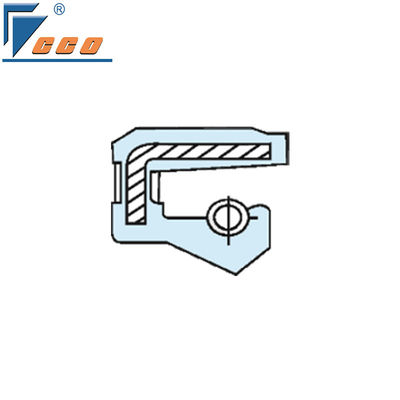

Single lip,single spring, steel farme wrapped in rubber,rotating seal,used in the occasion of low pressure without dust and pollution.Maximum pressure 0.03 MPA(0.3/ Kgf/cm2).

Characteristics

SC type oil seals are available in a wide range of materials to meet the severe demands of different working conditions.
Nitrile rubber oil seals, with excellent heat and abrasion resistance, have good compatibility with all kinds of lubricating oils and greases, and the working temperature range is from - 40℃ to 120℃, which is cost-effective and suitable for most of the conventional industrial scenarios.
Fluorine rubber material oil seal is known for aging resistance, extreme temperature resistance and strong oil resistance, can work stably in the temperature range of - 26 ℃ to 250 ℃, almost all common lubricants, fuel oil and gasoline, even in the harsh oil environment containing extreme pressure additives, can still maintain good performance.
Silicone rubber oil seals are characterized by high and low temperature resistance, and can maintain good elasticity and ozone and weather resistance under extreme temperatures ranging from - 70℃ to 260℃, and are widely used in special working conditions with harsh temperature requirements.

Application

Automobile: it can be used in the crankshaft oil seal, transmission oil seal and other parts of the automobile engine to prevent lubricant leakage.

Industrial machinery: commonly used in electric motors, reducers, pumps and other equipment, rotary shaft sealing, to ensure that the lubricating oil inside the equipment does not leak out, to maintain the normal operation of the equipment.

Hydraulic system: In some low pressure hydraulic system, SC type oil seal can be used to seal the hydraulic oil, to ensure the system pressure stability and normal circulation of the oil.

Specification of SC Type

Details Images

Packaging

Company Introduction

  Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

  The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
