Good price online

products details

Home > Products >
SC TYPE Oil Seal
>
Rubber Pump Oil Seals Seals Rear Crankshaft Oil Seal With Single Spring
All Category

TC TYPE Oil Seal

SC TYPE Oil Seal

TB TYPE Oil Seal

SB TYPE Oil Seal

EC TYPE Oil Seal

NBR Oil Seals

FKM Oil Seal

Mechanical Seals

Automotive Seals

Gear Reducer Oil Seals

Servo Motor Oil Seals

Customized Oil Seal
Contact Us
Miss. Elen
xiangteoilseal@163.com
18131923768
Contact Now
name
  • name
  • name
  • name

Rubber Pump Oil Seals Seals Rear Crankshaft Oil Seal With Single Spring

Brand Name: CCO
Model Number: SC Oil Seal
MOQ: Negotiable
Price: Negotiable
Packaging Details: Paper+Carton Box
Payment Terms: L/C,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Temperature Range:
-40°C To 120°C
Application:
Automotive, Industrial, Agricultural
Size:
Standard
Color:
Black, Gray
Resistance:
Oil, Heat, Aging
Sealing Principle:
Lip Seal
Product Type:
Oil Seal
Installation:
Press-fit
Supply Ability:
10000/week
Highlight:

Rubber Pump Oil Seals

,

Single Spring Pump Oil Seals

,

Rear Crankshaft Oil Seal

Product Description

Rubber Pump Oil Seals Seals Rear Crankshaft Oil Seal With Single Spring

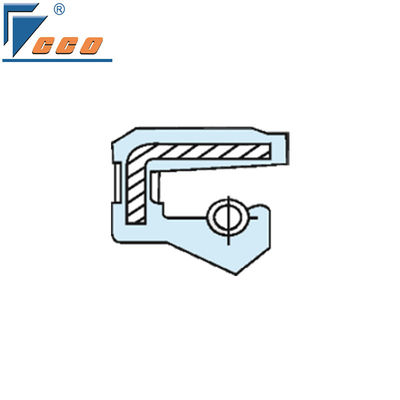

SC TYPE

  • Single lip
  • Single spring
  • Steel farme wrapped in rubber
  • Rotating seal
  • Maximum pressure 0.03 MPA(0.3/ Kgf/cm2).





Working Characteristics



  1. Low-pressure application: mainly applicable to low-pressure environment, it can maintain good sealing performance under no pressure or very low pressure, and can be used in some equipments which do not require high pressure, such as small motors, common pumps and so on.
  2. Speed limitation: it can adapt to a certain range of shaft rotation speed, but compared with some high-speed special oil seals, its applicable rotational speed is relatively low, but it can meet the running speed requirements of most common industrial equipment.
  3. Temperature range: According to different materials, the working temperature range is different.



Specification of SC Type





NO.

 Specification NO. Specification
1 23*35*6 39 110*130*12
2 25*40*8 40 115*140*12
3 32*52*8 41 115*145*14
4 40*58*8 42 117.47*139.7*12.7
5 40*62*11 43 120*140*12
6 42*65*12 44 120*150*12
7 50*65*8 45 130*160*12
8 50*80*8 46 130*160*13
9 52*65*9 47 130*160*14
10 57.5*72*9 48 130*160*15
11 58*80*12 49 130*170*12
12 60*75*9 50 135*159*12
13 60*80*7 51 135*165*12
14 60*80*10 52 140*160*12
15 60.32*79.37*9.52 53 140*160*13
16 65*90*10 54 140*164*12
17

65*90*13

 55 150*180*13
18 70*90*10 56 150*180*14
19 70*95*13 57 150*180*15
20 75*95*10 58 160*184*12
21 75*100*10 59 160*190*16
22 78*100*10 60 170*200*13
23 80*100*10 61 170*200*15
24 83*98*9 62 177.8*203.2*12.7
25 85*110*12 63 180*210*13
26 85*110*13 64 180*210*15
27 88.9*111*12*9.52 65 180*210*16
28 90*115*13 66 158*210*13
29 95*120*13 67 185*210*15
30 95*125*12 68 190*220*15
31 100*115*9 69 200*230*14
32 100*120*12 70 200*235*18
33 100*125*12 71 205*255*22
34 100*125*13 72 210*240*15
35 100*130*12 73 210*250*16
36 100*130*13 74 230*160*15
37 105*130*12 75 240*270*15
38 105*135*14 76 240*280*19









Details Images

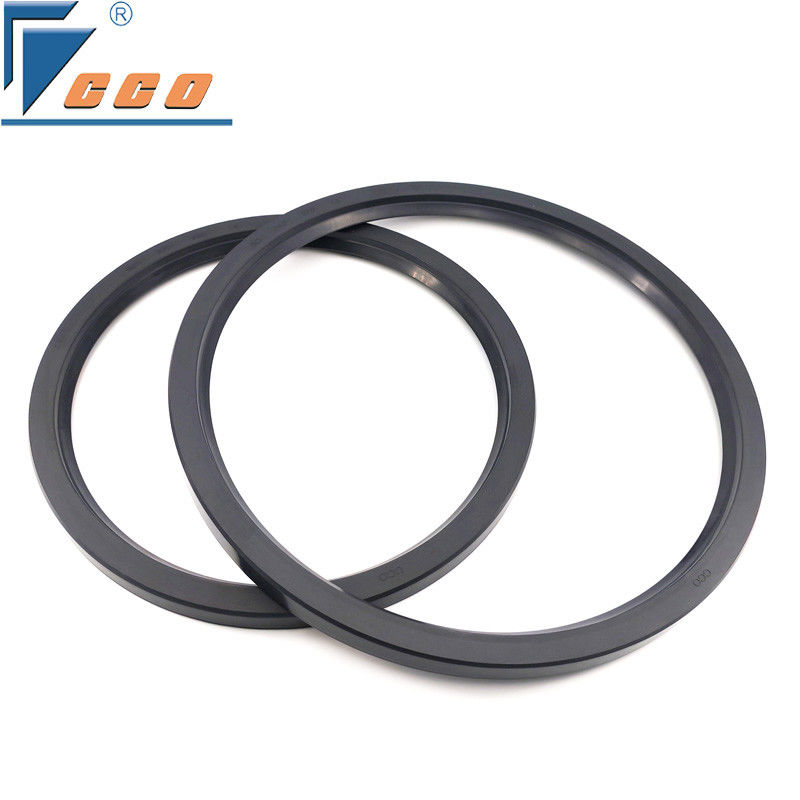

Rubber Pump Oil Seals Seals Rear Crankshaft Oil Seal With Single Spring 0

Rubber Pump Oil Seals Seals Rear Crankshaft Oil Seal With Single Spring 1





Packaging





Rubber Pump Oil Seals Seals Rear Crankshaft Oil Seal With Single Spring 2







Company Introduction



  Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

  The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.



Rubber Pump Oil Seals Seals Rear Crankshaft Oil Seal With Single Spring 3





Factory





Rubber Pump Oil Seals Seals Rear Crankshaft Oil Seal With Single Spring 4

Rubber Pump Oil Seals Seals Rear Crankshaft Oil Seal With Single Spring 5
