Gearbox SB Type Oil Seal Fkm Rubber Oil Seals Car Engines Oil Sealing

Brand Name: CCO
Model Number: SB Oil Seal
MOQ: Negotiable
Price: Negotiable
Packaging Details: Paper+Carton Box
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Features:
High Temperature Resistance, Oil Resistance, Wear Resistance
Type:
Oil Seal
Color:
Black,Brown
Material:
Nitrile Rubber
Temperature Range:
-40°C To 120°C
Application:
Automotive, Industrial Machinery, Agricultural Machinery
Supply Ability:
10000/week
Highlight:

Gearbox SB Type Oil Seal

,

Fkm SB Type Oil Seal

,

Gearbox Rubber Oil Seals

Product Description

Gearbox SB Type Oil Seal Fkm Rubber Oil Seals Car Engines Oil Sealing





Product

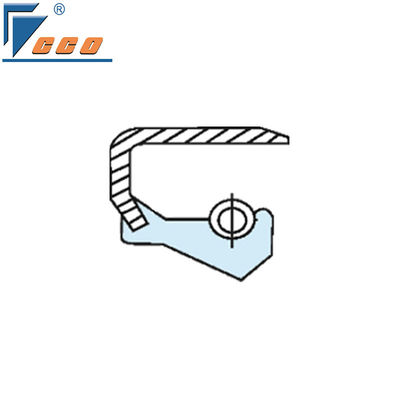

The outer layer is an iron shell, designed for steel rotating shafts or cast iron pool holes. For sealing, single lip with spring, low coefficient of friction, pressure resistance about 0.03Mpa.



1. Metal type oil seal with sealing medium on one side and outer ring for use in clean field.

2. Not only used for lubrication of machinery, but also prevents leakage of water, chemicals, gases, etc. from the crevices of machinery.
3. Prevents intrusion of dust or sand from outside.
4. Optimizes the difference in film thickness between push and pull strokes by distributing the contact pressure of the seal.
5. A rubber sealing lip is sintered to a metal ring to seal the moving parts.





Materials





According to the different use of media, pressure and temperature, choose different materials. Common materials include: NBR, FKM, Silicone Rubber, etc.



Nitrile:
1. Good oil resistance
2. Good abrasion resistance
3. Wide temperature adaptability
4. Good elasticity



FKM:
1. Excellent temperature resistance
2. Good chemical resistance
3. Outstanding sealing
4. Low compression set
5. Strong elasticity
6. High durability
7. Good aging resistance



Silicone :

It is resistant to both high and low temperatures, with excellent electrical insulation, high stability against thermal oxidation and ozone, and also has the characteristics of resistance to oil, solvents, chemicals and so on.







MATERIAL



 FEATURES Temperature

Nitrile Rubbr

(NBR)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Fair ozone resistance

Fair acid resistance

 -40~120°C

Fluorinated Rubber

(FKM)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Excellent ozone resistance

Excellent acid resistance

 -26~250°C
Silicone Rubber

Poor wear resistance

Excellent aging resistance

Poor Oil resistance

Good water resistance

Excellent ozone resistance

Fair acid resistance

 -60~225°C





Standard





Number Specifications Number Specifications
1 20*40*11 28 150*180*14
2 28*45*8 29 160*190*14
3 38*58*11 30 160*190*16
4 40*62*9 31 165*220*20
5 42*55*7 32 170*200*15
6 45*68*12 33 170*200*16
7 50*72*12 34 180*210*15
8 55*78*12 35 180*210*16
9 60*80*8 36 180*235*20
10 60*80*10 37 190*220*15
11 65*90*13 38 190*225*16
12 75*100*13 39 200*230*15
13 80*105*13 40 200*230*16
14 90*115*13 41 200*240*20
15 95*120*13 42 210*240*15
16 100*125*13 43 210*250*16
17 95*130*13 44 210*250*20
18 105*135*14 45 220*255*16
19 110*140*14 46 220*260*22
20 115*145*14 47 230*260*15
21 120*150*14 48 240*270*15
22 125*155*14 49 240*280*19
23 130*160*14 50 250*280*15
24 135*165*14 51 270*330*25
25 135*170*12 52 280*320*18
26 140*170*14 53 320*360*25
27 145*175*14 54 365*405*18




Details Images

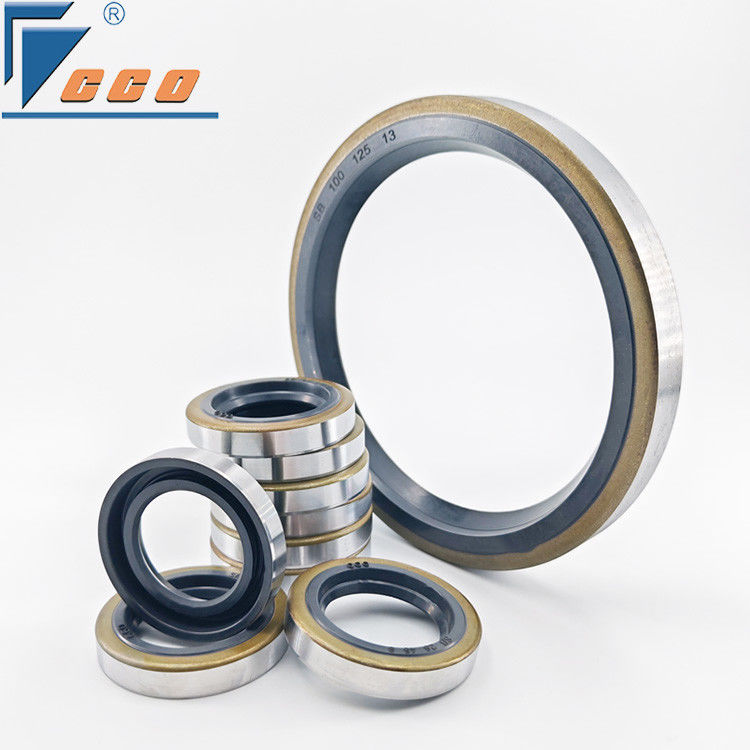

Gearbox SB Type Oil Seal Fkm Rubber Oil Seals Car Engines Oil Sealing 0

Gearbox SB Type Oil Seal Fkm Rubber Oil Seals Car Engines Oil Sealing 1Gearbox SB Type Oil Seal Fkm Rubber Oil Seals Car Engines Oil Sealing 2





Product Packaging





Gearbox SB Type Oil Seal Fkm Rubber Oil Seals Car Engines Oil Sealing 3Gearbox SB Type Oil Seal Fkm Rubber Oil Seals Car Engines Oil Sealing 4









Company Introduction







  Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.



  The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products.



  Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.







Gearbox SB Type Oil Seal Fkm Rubber Oil Seals Car Engines Oil Sealing 5



 Gearbox SB Type Oil Seal Fkm Rubber Oil Seals Car Engines Oil Sealing 6
