Good price online

products details

Home > Products >
SB TYPE Oil Seal
>
Skeleton SB Type Oil Seals Metal Dust Lip Oil Seal Mechanical Sealing For Gearbox
All Category

TC TYPE Oil Seal

SC TYPE Oil Seal

TB TYPE Oil Seal

SB TYPE Oil Seal

EC TYPE Oil Seal

NBR Oil Seals

FKM Oil Seal

Mechanical Seals

Automotive Seals

Gear Reducer Oil Seals

Servo Motor Oil Seals

Customized Oil Seal
Contact Us
Miss. Elen
xiangteoilseal@163.com
18131923768
Contact Now
name
  • name
  • name
  • name

Skeleton SB Type Oil Seals Metal Dust Lip Oil Seal Mechanical Sealing For Gearbox

Brand Name: CCO
Model Number: SB Oil Seal
MOQ: Negotiable
Price: Negotiable
Packaging Details: Paper+Carton Box
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Features:
Highly Resistant To Oil And Heat
Lip Type:
Double Lip
Material:
Nitrile Rubber
Application:
Automotive, Industrial And Agricultural Machinery
Color:
Black,Brown
Manufacturer:
SB TYPE
Installation Method:
Press-fit
Country Of Origin:
China
Supply Ability:
10000/week
Highlight:

Skeleton SB Type Oil Seals

,

Metal Dust Lip Oil Seal

,

Gearbox SB Type Oil Seals

Product Description

Skeleton SB Type Oil Seals Metal Dust Lip Oil Seal Mechanical Sealing For Gearbox



Properties of SB type oil seals

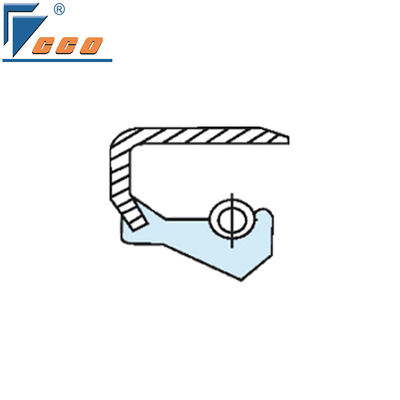

Structural Properties
Single lip design: An oil seal with a single sealing lip, mainly used to prevent lubricant leakage.
One spring: The spring is used to ensure the sealing of oil and grease for more benign environments.
Metal housing with rubber coating: Metal housing eliminates corrosion during storage. The rubber inner coating protects the housing from the media.


Material properties
Rubber Material: Silicone Silicone, Nitrile Nitrile, Viton Fluoroelastomer are common.
Hardness: NBR Nitrile is generally 70A, FKM Fluoroelastomer is 75A, Silicone is 80A2.


Specification
Various sizes available


Performance Properties
Sealing pressure: Generally applicable to lower pressure environment, the working pressure of SB type external skeleton single lip oil seal is 0.03MPa.
Temperature range: SB type oil seals made of different materials are applicable to different temperature ranges, such as standard NBR material is suitable for - 40℃~120℃.
Chemical resistance: According to the different rubber materials, it has different resistance to different chemical media.


Application Properties
Application parts: Mainly used in gearboxes, hydraulic cylinders and other mechanical equipment.​





Specifications





Number Specifications Number Specifications
1 20*40*11 28 150*180*14
2 28*45*8 29 160*190*14
3 38*58*11 30 160*190*16
4 40*62*9 31 165*220*20
5 42*55*7 32 170*200*15
6 45*68*12 33 170*200*16
7 50*72*12 34 180*210*15
8 55*78*12 35 180*210*16
9 60*80*8 36 180*235*20
10 60*80*10 37 190*220*15
11 65*90*13 38 190*225*16
12 75*100*13 39 200*230*15
13 80*105*13 40 200*230*16
14 90*115*13 41 200*240*20
15 95*120*13 42 210*240*15
16 100*125*13 43 210*250*16
17 95*130*13 44 210*250*20
18 105*135*14 45 220*255*16
19 110*140*14 46 220*260*22
20 115*145*14 47 230*260*15
21 120*150*14 48 240*270*15
22 125*155*14 49 240*280*19
23 130*160*14 50 250*280*15
24 135*165*14 51 270*330*25
25 135*170*12 52 280*320*18
26 140*170*14 53 320*360*25
27 145*175*14 54 365*405*18

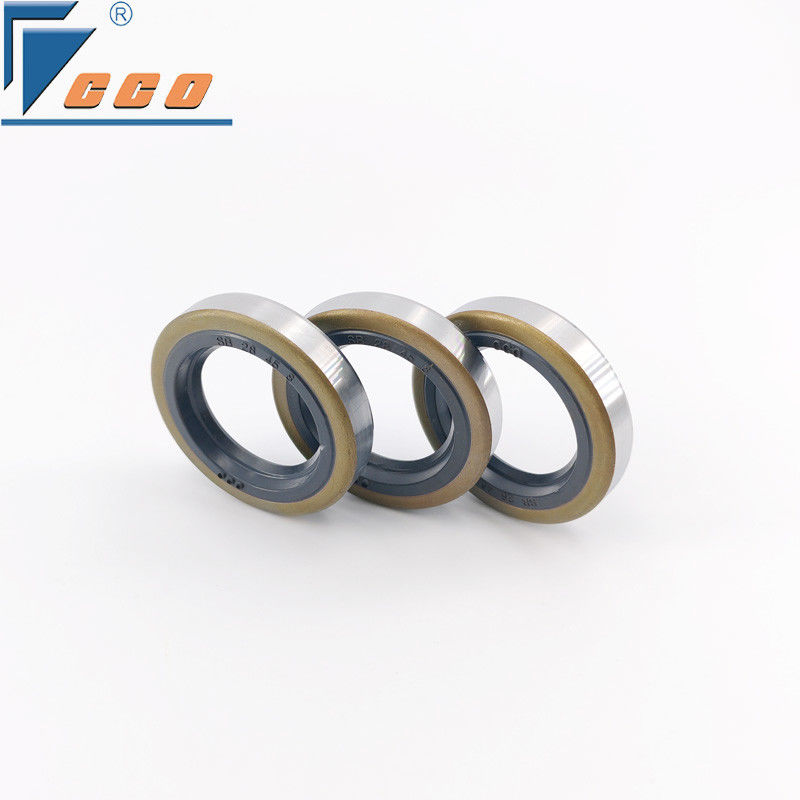

Details Images





Skeleton SB Type Oil Seals Metal Dust Lip Oil Seal Mechanical Sealing For Gearbox 0Skeleton SB Type Oil Seals Metal Dust Lip Oil Seal Mechanical Sealing For Gearbox 1Skeleton SB Type Oil Seals Metal Dust Lip Oil Seal Mechanical Sealing For Gearbox 2





Product Packaging





Skeleton SB Type Oil Seals Metal Dust Lip Oil Seal Mechanical Sealing For Gearbox 3Skeleton SB Type Oil Seals Metal Dust Lip Oil Seal Mechanical Sealing For Gearbox 4





Factory





Skeleton SB Type Oil Seals Metal Dust Lip Oil Seal Mechanical Sealing For Gearbox 5





Company Introduction







  Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.



  The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products.



  Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.







Skeleton SB Type Oil Seals Metal Dust Lip Oil Seal Mechanical Sealing For Gearbox 6
