Oil Resistance Motor Oil Seals High Pressure Rotary Sealer Mechanical Seal Ring

Brand Name: CCO
Model Number: TC Oil Seal
MOQ: Negotiable
Price: Negotiable
Packaging Details: Paper+Carton Box
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Durability:
Long-lasting
Size:
Standard
Material:
Rubber
Resistance:
Oil, Grease, Fuel, Water
Installation:
Easy
Shape:
Round
Temperature Range:
-40°C To 120°C
Usage:
Sealing
Supply Ability:
10000/week
Highlight:

Oil Resistance Motor Oil Seals

,

Mechanical Motor Oil Seals

,

Oil Resistance Mechanical Seal Ring

Product Description



Oil Resistance Motor Oil Seals High Pressure Rotary Sealer Mechanical Seal Ring



TC TYPE:

  1. ​ Double lips(a main lip, a vice lip): The main lip prevents oil leakage and the vice lip prevents the entry of dust, impurities and other contaminants.
  2.  One spring: The spring has a certain self-adaptation and compensation ability for shaft eccentricity, vibration, etc., so as to ensure the sealing effect.
  3.  The steel skeleton is fully wrapped in rubber, rotary seal, used in low pressure.
  4.  Highest pressure 0.03mpa(0.3kgf/cm2)

TC type oil seals made of NBR :

  • Good oil resistance
  • Good abrasion resistance
  • Wide temperature adaptability
  • Good elasticity

TC type oil seals made of FKM :

  • Excellent temperature resistance
  • Good chemical resistance
  • Outstanding sealing performance
  • Low compression permanent deformation
  • Strong elasticity and self-lubrication
  • High durability
  • Good aging resistance

According to the different use of media, pressure and temperature, choose a different material.







MATERIAL



 Temperature



Nitrile Rubbr

(NBR)



 -40~120°C



Fluorinated Rubber

(FKM)



 -26~250°C



Silicone Rubber



 -60~225°C





Specifications





NO. SPECIFICATION NO. SPECIFICATION
1 4*12*6 2000 38*55*9
2 4*16*4 2001 38*55*10
3 4*16*6 2002 38*55*12
4 4*16*7 2003 38*56*5
5 4.5*15*7 2004 38*56*7
6 4.5*16*7 2005 38*56*8
7 5*12*5 2006 38*56*10
8 5*12*8 ... ...
9 5*13*7 4663 880*930*25
10 4*14*5 4664 890*950*25
... ... 4665 900*950*25
201 10*26*5 4666 900*960*25
202 10*26*6 4667 900*960*30
203 10*26*7 4668 910*960*25
204 10*26*8 4669 920*980*25
205 10*27*6 4670 940*1000*25
206 10*28*7 4671 950*1000*25
207 10*28*8 4672 970*1020*25
208 10*29*7 4673 1020*1070*25
209 10*30*7 4674 1150*1200*25
... ... 4675 1320*1370*25








Details Images

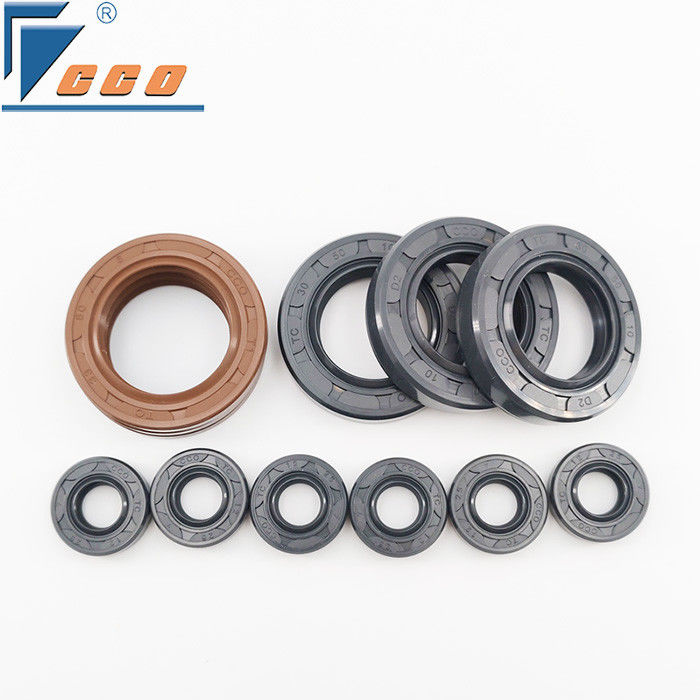

Oil Resistance Motor Oil Seals High Pressure Rotary Sealer Mechanical Seal Ring 0Oil Resistance Motor Oil Seals High Pressure Rotary Sealer Mechanical Seal Ring 1

Oil Resistance Motor Oil Seals High Pressure Rotary Sealer Mechanical Seal Ring 2



Product Packaging





Oil Resistance Motor Oil Seals High Pressure Rotary Sealer Mechanical Seal Ring 3





Company Introduction





  Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.
  The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.



Oil Resistance Motor Oil Seals High Pressure Rotary Sealer Mechanical Seal Ring 4





Oil Resistance Motor Oil Seals High Pressure Rotary Sealer Mechanical Seal Ring 5
