Temperature Environments Skeleton Oil Seal Automotive Oil Seals FKM Oil Sealing

Brand Name: CCO
Model Number: TC Oil Seal
MOQ: Negotiable
Price: Negotiable
Packaging Details: Paper+Carton Box
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Material:
NBR/FKM/VITON/SILICONE
Color:
Black,Brown Or Gray
Size:
Standard Size
Application:
Widely
Sample:
Available
Package:
Carton Box
Brand Name:
CCO
Product Name:
Oil Seal
Type:
TC SC TC TB EC SB SC TA VG VB Etc.
Temperature:
-40~120℃
Supply Ability:
10000/week
Highlight:

FKM Skeleton Oil Seal

,

FKM Automotive Oil Seals

,

Automotive Skeleton Oil Seal

Product Description

Temperature Environments Skeleton Oil Seal Automotive Oil Seals FKM Oil Sealing



TC type oil seals have the following main features:

  •  Double lip structure: there are main lip and vice lip. The main lip is mainly used to seal the liquid and prevent it from leaking; the secondary lip is used to block dust, water and other impurities from entering into the inside of the equipment
  •  Spring-assisted seal: there is usually a spring inside the sealing lip, which can exert a certain radial force on the sealing lip, making the oil seal always fit closely on the shaft surface during shaft rotation or equipment operation.
  • The steel skeleton is fully wrapped in rubber, rotary seal, used in low pressure, one side with sealing medium and the other side with light dust. Highest pressure 0.03mpa(0.3kgf/cm2).

Material:

  •  According to the different use of media, pressure and temperature, choose a different material. Common materials include: nitrile rubber skeleton oil seals, fluorine rubber skeleton oil seals, silicone skeleton oil seals and so on.





Product



 TC Type



Brand Name



 CCO



Original Place



 Hebei,China



Material



 NBR / FKM



Lip

 Double



Spring



 One Spring



Pressure



 0.03mpa



Size



 Standard Specifications



Feature



Oil Resistance, Heat Resistance,Wear Resistance





Specifications



Our company has a lot of specifications of TC type, customers can choose according to demand.



NO. SPECIFICATION NO. SPECIFICATION
1 4*12*6 2000 38*55*9
2 4*16*4 2001 38*55*10
3 4*16*6 2002 38*55*12
4 4*16*7 2003 38*56*5
5 4.5*15*7 2004 38*56*7
6 4.5*16*7 2005 38*56*8
7 5*12*5 2006 38*56*10
8 5*12*8 ... ...
9 5*13*7 4663 880*930*25
10 4*14*5 4664 890*950*25

...

 ... 4665 900*950*25
201 10*26*5 4666 900*960*25
202 10*26*6 4667 900*960*30
203 10*26*7 4668 910*960*25
204 10*26*8 4669 920*980*25
205 10*27*6 4670 940*1000*25
206 10*28*7 4671 950*1000*25
207 10*28*8 4672 970*1020*25
208 10*29*7 4673 1020*1070*25
209 10*30*7 4674 1150*1200*25
... ... 4675 1320*1370*25





Details Images

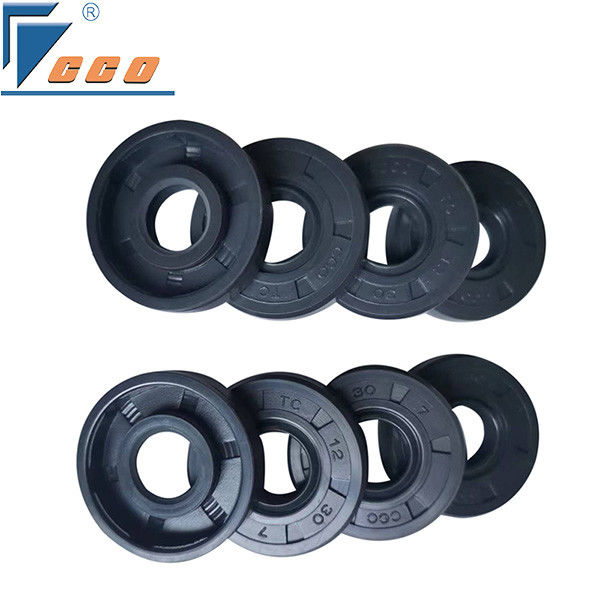

Temperature Environments Skeleton Oil Seal Automotive Oil Seals FKM Oil Sealing 0Temperature Environments Skeleton Oil Seal Automotive Oil Seals FKM Oil Sealing 1Temperature Environments Skeleton Oil Seal Automotive Oil Seals FKM Oil Sealing 2





Packaging



Temperature Environments Skeleton Oil Seal Automotive Oil Seals FKM Oil Sealing 3





Company Introduction



  Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.
  The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.



Temperature Environments Skeleton Oil Seal Automotive Oil Seals FKM Oil Sealing 4

Temperature Environments Skeleton Oil Seal Automotive Oil Seals FKM Oil Sealing 5Temperature Environments Skeleton Oil Seal Automotive Oil Seals FKM Oil Sealing 6
