TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention

Brand Name:	CCO
Model Number:	TC Oil Seal
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Paper+Carton Box
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Double

Color:

Type:

Material:

Rubber

Working Medium:

Oil, Water, Gas

Application:

Automotive, Industrial, Agricultural

Supply Ability:

10000/week

Highlight:

Shaft TC Type Oil Seal

Rotary Shaft Oil Seal

Fluorine Rubber Oil Seals

Product Description

TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention

TC type oil seals have the following main features:

Double-lip sealing structure (including main lip and secondary lip), equipped with a spring. The main lip is primarily used for sealing liquids and preventing leakage; the secondary lip prevents dust, water, and other contaminants from entering the equipment interior. While maintaining basic sealing performance, it significantly enhances equipment reliability under complex operating conditions.
Rotary seal, suitable for low-pressure environments, with a maximum pressure of 0.03 MPa (0.3 kgf/cm²).
Excellent elasticity and adaptability: The rubber material itself provides the oil seal with excellent elasticity, enabling it to adapt to shaft movement and shape changes. The performance of nitrile rubber can be flexibly adjusted through formulation to suit different operating conditions, particularly suitable for sealing and vibration damping applications involving medium temperatures and contact with oil-based media. When selecting, it is necessary to match the optimal acrylonitrile content of nitrile rubber grades based on specific medium types, temperature ranges, and cost budgets.
Wide applicability: It provides reliable sealing in various working environments, including sealing for various rotating shafts.

Brand Name	CCO
Original	Hebei,China
Material	NBR/FKM/ACM/SILICONE
Used	Automobile Industry Industrial Machinery Agricultural Machinery
Sample	Available
Size	Standard
Features	Oil Resistance, Heat Resistance,Wear Resistance

Other Types

Type	Features
TC	The outer part is rubberized design, double lip with spring
SC	The outer part is rubberized design, double lip with spring
TB	The outer layer is an iron shell, double lip with spring
SB	The outer layer is an iron shell, double lip with spring
TA	The design of the inner shell combination is used to strengthen the steel of the oil seal,double lip with spring
EC	It is mainly used for the orifice core of the oil seal and the bearing, mainly for the gear box and other parts
SA	The design of the inner shell combination is used to strengthen the steel of the oil seal,double lip with spring
DKB	The outer iron shell is fluted and has a dual lip dust seal.
TCN	The exterior is iron on one side and rubber on the other, with springs on both lips
TCV	Outer layer is rubber, inner skeleton, double lip with spring
VG	Surface threaded, single lip without spring
VB	Outside is iron shell, inside is rubber, single lip without spring
VC	The outer part is rubberized, single lip without spring

Details Images

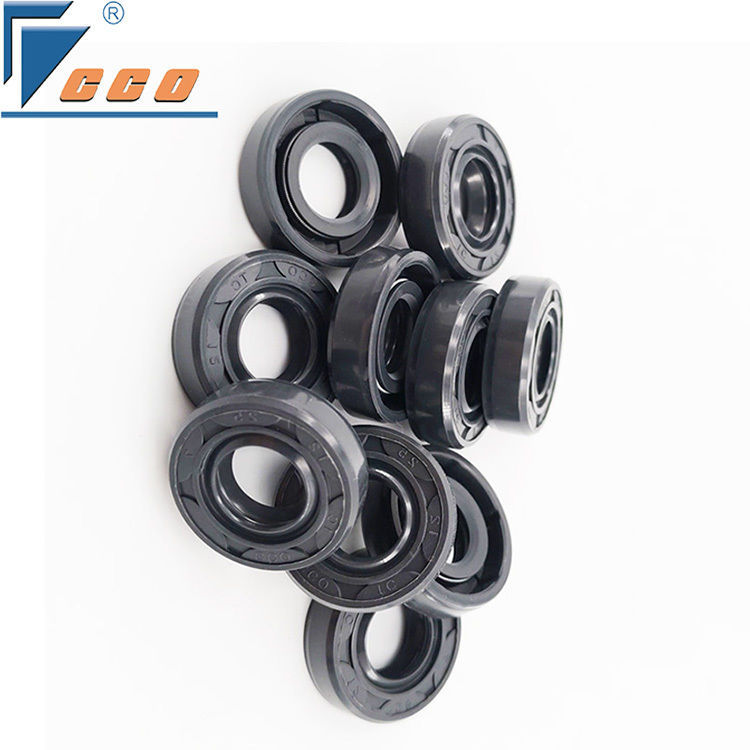

TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention 0

Packaging

TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention 2

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.

TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention 3

TC Type Oil Seals Mechanical Double Lip Oil Seal For Leak And Dust Prevention 4
