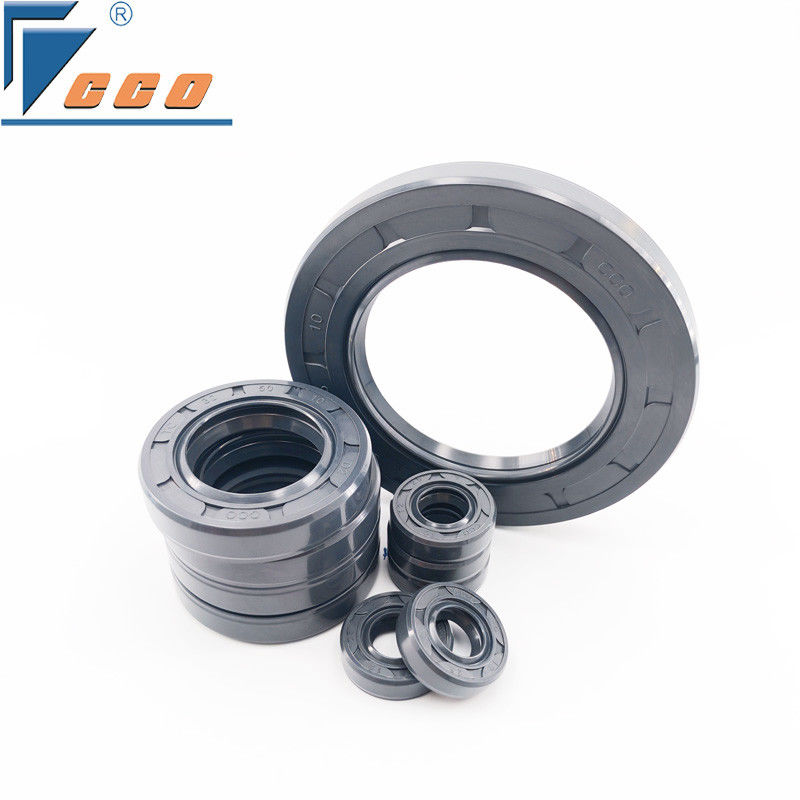

NBR SC Type Oil Seal Metal Dust Lip Seal For Machinery

SC TYPE:Single lip,single spring, steel farme wrapped in rubber,rotating seal,used in the occasion of low pressure without dust and pollution.Maximum pressure 0.03 MPA(0.3/ Kgf/cm2).

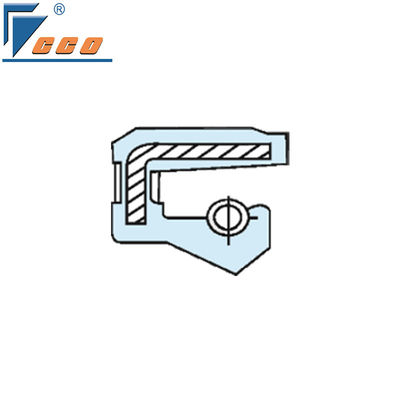

Structural design

• Single lip structure: with one sealing lip, directly contacting with the rotating shaft, simple structure, can effectively prevent fluid leakage.
• Clamping spring: Equipped with a clamping spring, it can help the sealing lip always maintain a suitable compression force on the shaft under different pressure conditions, maintain a good sealing effect and improve sealing efficiency.
• Metal skeleton: Usually with metal skeleton to provide support for the oil seal, enhance its overall rigidity and stability, to ensure that the oil seal can maintain its shape in the working process, not easy to deform.
• Rubber Covering: The outer diameter of the oil seal is usually covered with rubber, which can improve the sealing ability of the outer diameter, and at the same time, it can better cooperate with the installation body and play the role of cushioning and sealing. Some SC type oil seals have rubber coating on the metal shell, which can adapt to different working environments.

Specification of SC Type

Details Images

Packaging

Company Introduction

  Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

  The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.

Factory
