Skeleton Type Rubber Oil Seal Dust Lip Seals For Mechanical Equipment

Brand Name: CCO
Model Number: SC Oil Seal
MOQ: Negotiable
Price: Negotiable
Packaging Details: Paper+Carton Box
Payment Terms: L/C,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Type:
Oil Seal
Resistance:
Oil, Heat, Aging
Application:
Automotive, Industrial, Agricultural, Etc.
Sealing Principle:
Lip Seal
Temperature Range:
-40°C To +120°C
Manufacturer:
CCO
Type:
Spring Loaded
Installation Type:
Press-Fit
Supply Ability:
10000/week
Product Description

O Seal Ring Machine SC Type Oil Seal Rotary Shaft Oil Seals NBR FKM Oil Seal

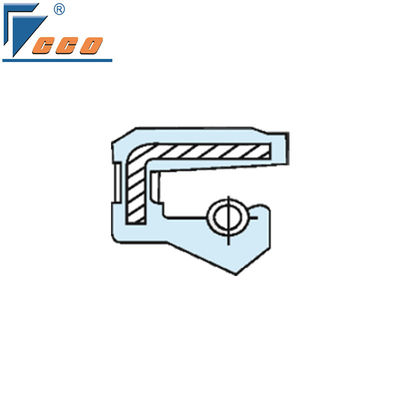

SC TYPE





SC type oil seal, also known as spring-loaded single-lip seal, is mainly composed of rubber body, steel skeleton and clamping spring. The rubber body has elasticity and sealing performance, and is the core part to realize the seal; the steel skeleton is used to support the rubber body and enhance the rigidity and installation stability of the oil seal; the spring helps to keep the sealing lip compressed against the shaft under changing pressure conditions to ensure the sealing efficiency.





Material Selection



Main material: generally made of Nitrile Rubber (NBR) or Fluorine Rubber (FKM).



MATERIAL FEATURES Temperature

Nitrile Rubbr

(NBR)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Fair ozone resistance

Fair acid resistance

 -40~120°C

Fluorinated Rubber

(FKM)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Excellent ozone resistance

Excellent acid resistance

 -26~250°C
Silicone Rubber

Poor wear resistance

Excellent aging resistance

Poor Oil resistance

Good water resistance

Excellent ozone resistance

Fair acid resistance

 -60~225°C





Specification of SC Type





NO.

 Specification NO. Specification
1 23*35*6 39 110*130*12
2 25*40*8 40 115*140*12
3 32*52*8 41 115*145*14
4 40*58*8 42 117.47*139.7*12.7
5 40*62*11 43 120*140*12
6 42*65*12 44 120*150*12
7 50*65*8 45 130*160*12
8 50*80*8 46 130*160*13
9 52*65*9 47 130*160*14
10 57.5*72*9 48 130*160*15
11 58*80*12 49 130*170*12
12 60*75*9 50 135*159*12
13 60*80*7 51 135*165*12
14 60*80*10 52 140*160*12
15 60.32*79.37*9.52 53 140*160*13
16 65*90*10 54 140*164*12
17

65*90*13

 55 150*180*13
18 70*90*10 56 150*180*14
19 70*95*13 57 150*180*15
20 75*95*10 58 160*184*12
21 75*100*10 59 160*190*16
22 78*100*10 60 170*200*13
23 80*100*10 61 170*200*15
24 83*98*9 62 177.8*203.2*12.7
25 85*110*12 63 180*210*13
26 85*110*13 64 180*210*15
27 88.9*111*12*9.52 65 180*210*16
28 90*115*13 66 158*210*13
29 95*120*13 67 185*210*15
30 95*125*12 68 190*220*15
31 100*115*9 69 200*230*14
32 100*120*12 70 200*235*18
33 100*125*12 71 205*255*22
34 100*125*13 72 210*240*15
35 100*130*12 73 210*250*16
36 100*130*13 74 230*160*15
37 105*130*12 75 240*270*15
38 105*135*14 76 240*280*19

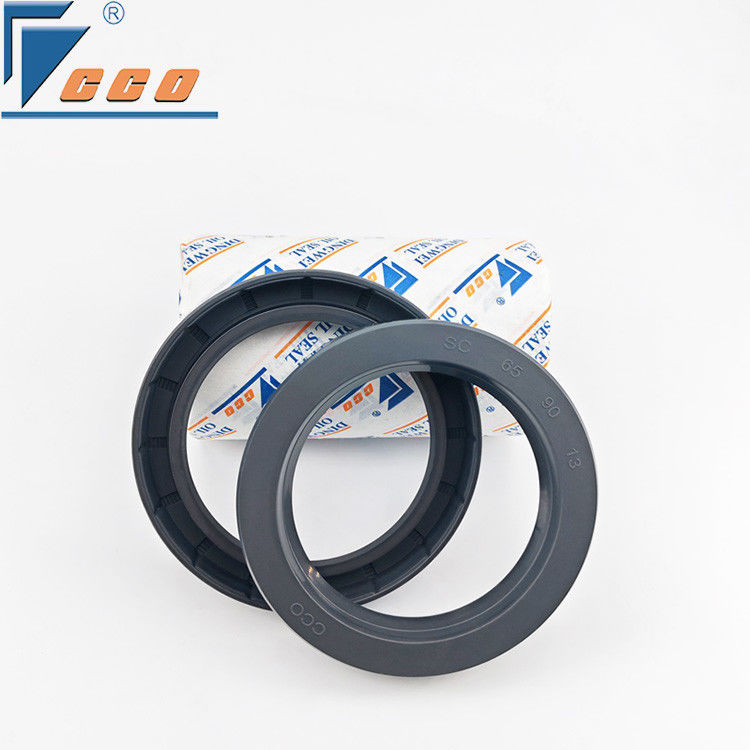

Details Images



Skeleton Type Rubber Oil Seal Dust Lip Seals For Mechanical Equipment 0Skeleton Type Rubber Oil Seal Dust Lip Seals For Mechanical Equipment 1



Packaging





Skeleton Type Rubber Oil Seal Dust Lip Seals For Mechanical Equipment 2





Company Introduction



  Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

  The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.



Skeleton Type Rubber Oil Seal Dust Lip Seals For Mechanical Equipment 3





Factory





Skeleton Type Rubber Oil Seal Dust Lip Seals For Mechanical Equipment 4

Skeleton Type Rubber Oil Seal Dust Lip Seals For Mechanical Equipment 5
